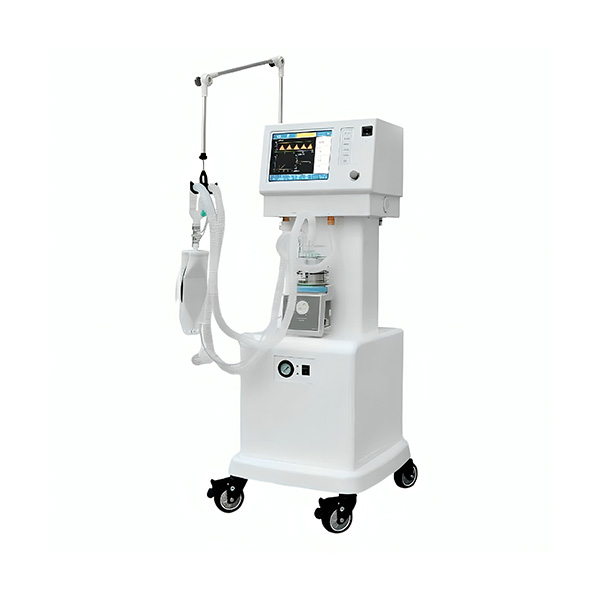

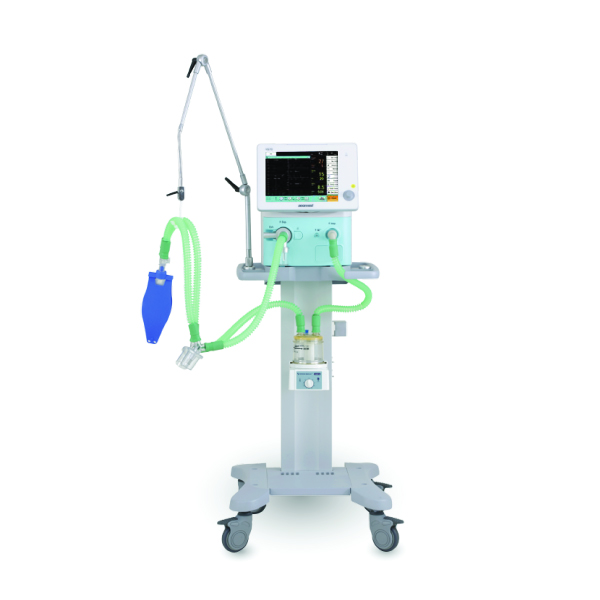

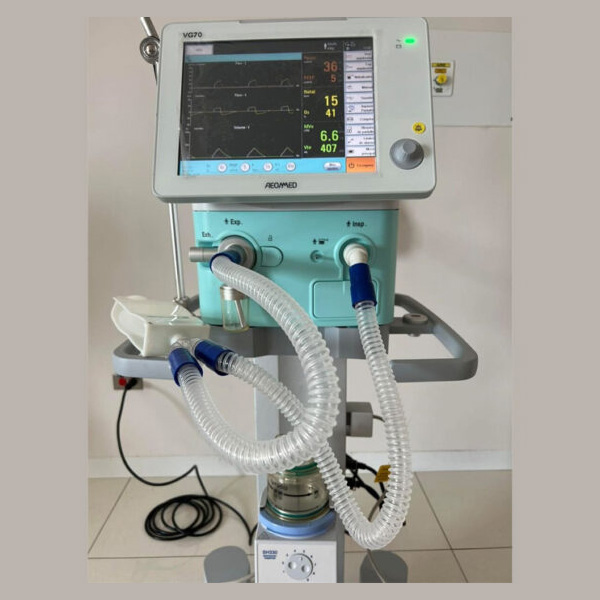

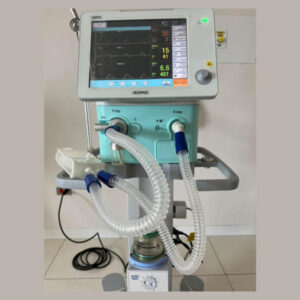

ICU/CCU Ventilator VG70

Ventilation Settings

Ventilation Modes

VCV (A/C), PCV (A/C), PRVC (optional), PSV (optional), STANDBY
SIMV (VCV)+PSV, SIMV (PCV)+PSV, SIMV (PRVC)+PSV
SPONT/CPAP+PSV
BIVENT/APRV +PSV (optional)
NIV/CPAP, NIV-T, NIV-S/T

Enhancements

Apnea ventilation, Pressure and Flow trigger, Automatic Tube Compensation (ATC), Smart suction
Manual breath, Insp/Exphold, Screen freeze, Nebulization, Lung recruitment

Parameters
Tidal volume (VT)	20-2000ml
Respiratory rate (RR)	1 to 80 bpm
Inspiratory time (Ti)	0.2 to 9 s (adult), 0.2 to 5 s (pediatric)
Inspiratory flow (Flow)	0 to 100 L/min (pediatric), 0 to 180L/min (adult)
Inspiratory pressure (Pinsp)	5 to 70 mbar (or cmH2O)
Inspiratory pressure limit (Pmax)	80 mbar (or cmH2O)
PEEP	0 to 35 mbar (or cmH2O)
Tslope	0 to 2 s
O2 concentration (FiO2)	21 to 100 Vol%
Trigger sensitivity	0.5 to 20 L/min (Flow trigger), -20 to 0 mbar (or cmH2O) (Pressure trigger)
I/E ratio	1/10 to 4/1
Apnea alarm time	10-60 seconds

Monitoring
Pressure values	Pplat, Ppeak, Pmean, Pmin, PEEP
Volume/Flow values	VTI, VTE, MV, MVe, MVspont
Time values	f_total, f_spont, I:E
Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2)
Compliance (dynamic & static), Resistance (R), MVleak, RSBI, WOB, I:E, Vdaw, PEEPi
Pressure-Volume loop, Pressure-Flow loop, Flow-Volume loop

Alarms

Expiratory minute volume (MV) High/Low, Airway pressure (Paw) High/Low,
VTe Low, PEEP High/Low, Insp. O2 concentration (FiO2) High/Low,
End-expiratory CO2 concentration (etCO2) High/Low, fspont High, Apnea alarm, Disconnection,
Flow sensor error, Gas supply, Electrical supply & battery failure,
Exhalation obstruction, Apnea backup for low frequency alarm

Physical Specifications
Dimensions (WxDxH)	375mm x 395mm x 430mm
Weight	15kg (33.1lbs)
Screen	12.1″ TFT color touch screen

Product Brochure >
